Product Details:
|
Power: | 1.5kw | Capacity: | 15kg |
---|---|---|---|
Voltage: | 220/380v | Drum Size: | Ф700×400mm |
Washing Speed: | 40rpm/min | Extractor Speed: | 750rpm/min |
Machine Size: | 1100×1150×1470mm | Industry Used: | Electronic Industry |
Use: | Cleaning | After-sales Service Provided:: | Video Technical Support, Field |
Machine Type: | 10kg To 25kg Industrial Laundry | Cleaning Type: | Clean-In-Place (CIP) |
Feature: | Critical Cleaning | Cleaning Process: | Cold Water Cleaning |
Warranty: | 1 Year | Material: | Stainless Steel |
High Light: | hotel kitchen equipments,hotel serving equipment |

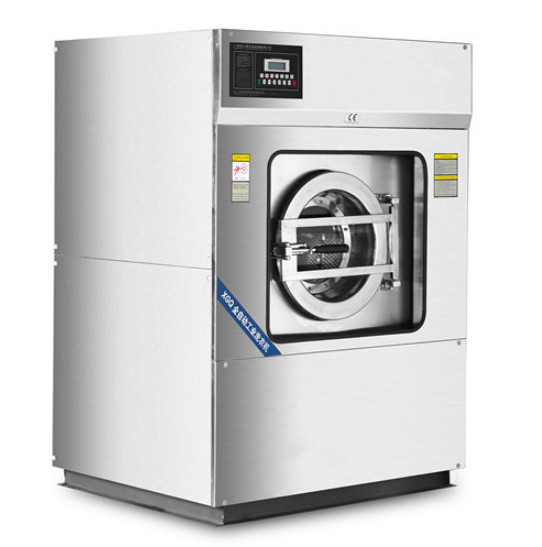

Stainless Steel Commercial Hotel Equipment Heavy Duty Laundry Washing Machine
Heavy duty laundry washing machine for commercial cleaning equipment hospital use laundry washing
Model | XGQ-15F | XGQ-25F | XGQ-50F | XGQ-80F | XGQ-100F |
Capacity | 15KG | 25kg | 50kg | 80kg | 100kg |
Drum size | Ф700×400mm | ф800×500mm | ф980×650mm | ф1200×750mm | ф1200×850mm |
Motor Power | 1.5kw | 2.2kw | 5.5kw | 11kw | 11kw |
Voltage | 220/380v | 220/380v | 380v | 380v | 380v |
Washing speed | 40rpm/min | 40rpm/min | 35rpm/min | 30rpm/min | 30rpm/min |
Extractor speed | 750rpm/min | 750rpm/min | 750rpm/min | 700rpm/min | 700rpm/min |
Water press | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa | 0.2-0.4Mpa |
Steam press | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
Air pess | NO | NO | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
Water Tube size | DN25 | DN25 | DN40 | DN40 | DN40 |
Steamer tube size | DN15 | DN15 | DN25 | DN25 | DN25 |
Power consumption | 0.4Kw.h | 0.8Kw.h | 1Kw.h | 1.6Kw.h | 1.8Kw.h |
Water consumption | 300kg | 400kg | 750kg | 1200kg | 1800kg |
Steamer consumption | 8kg | 20kg | 30kg | 45kg | 50kg |
Machine size | 1100×1150×1470mm | 1250×1200×1550mm | 1700×1600×1850mm | 1800×1700×2050mm | 2000×1750×2050mm |
Net Weight | 650kg | 950kg | 2000kg | 2500kg | 3000kg |
1. Variable Frequency inverter from Simens,LG or LS
2. XGQ Washer Extractor is the latest products in laundry markets,it is design by four or eight springs and suspension system with low vibration, Thus increases the stabilization and duration of the machine.
2. Industrial washer extractor adopts water drainage out-let help up keeping the laundry room clean and tidy .
3. External oiling system of moving compontnts comply with human engineering principles,reduce the human fatigue when carry out the maintenance works.
4. The loading Door have this three superiority: Big size makes the loading and unloading the textile more convenient, Material of SUS 304 Stainless steel reduce the damage linen; Safe lock is standard design.
5. Both eliminate the noise of steam and faster the heating process.

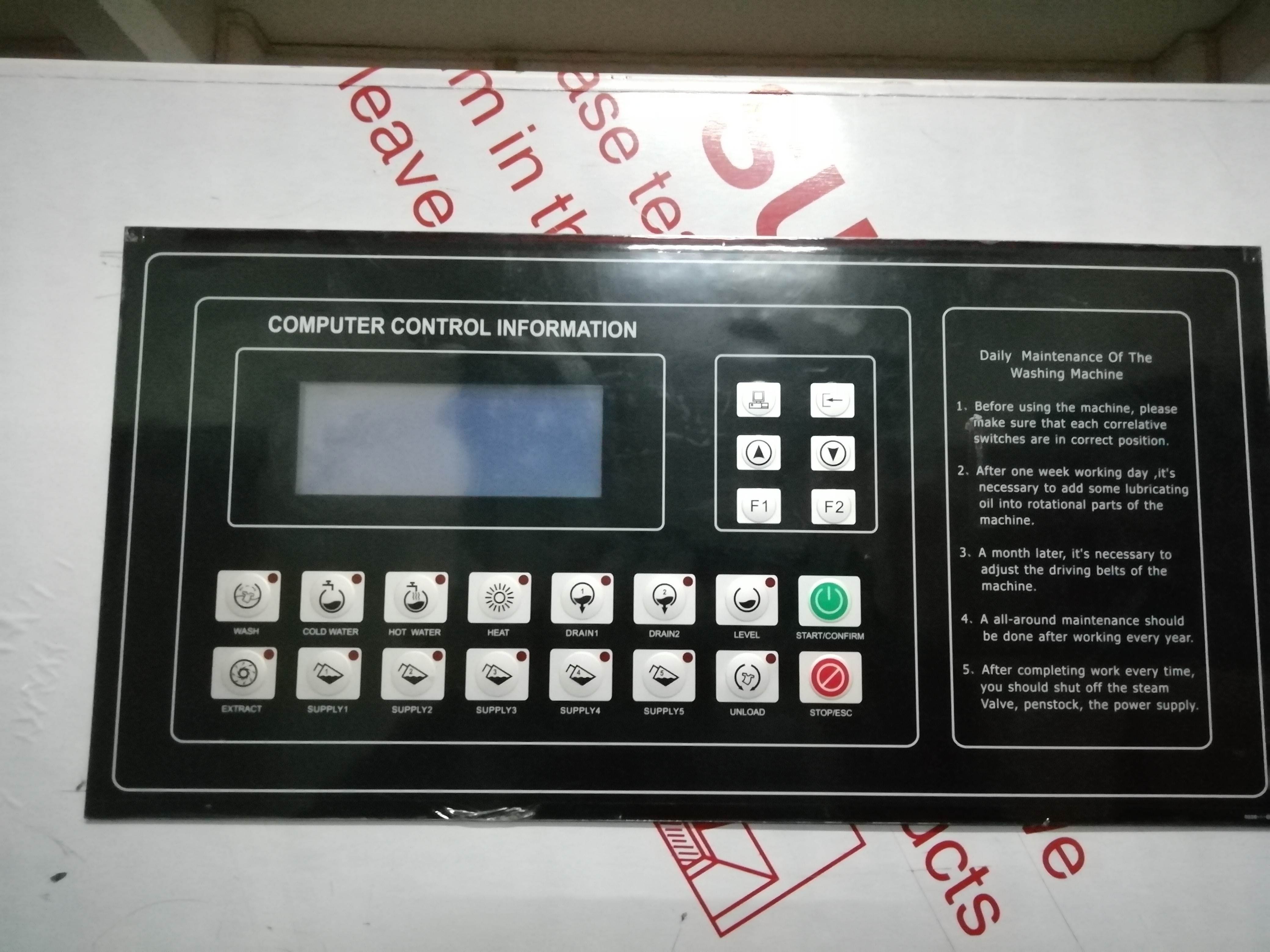

6. Big screen touch-types computer shows the current running information. it is professional and flexible 5 washing programmes,three control mode available : manual ,automatic, semi-automatic ,built in 30 washing programs memory.
7. Fitted with high quality durable rotating drum ball bearing.
8. This industrial washer extractor adopts with Teflon rubber O-ring which seals off the bearing from being in direct contact with laundry water and detergent during washing. It greatly enhance the life spin of the drum bearing.
9. Showers spray type of detergent dosing system which can accommodate 5types of detergents.
10. High Dehydrate Rate ,the greatest G-force is up to 350G, thus can reduce water and energy consumption no less than 30%
11. Programmable water levels, temperatures and cool-down.
Patented anti-vibration structure spring,shock absorption reaches 95%.Real meaing offree standing,No damege to machine while high spin.
. V-belts, run smoothly.
. Frequency controlled motor and low noise.
. American TWB over sized bearings, ,safety and stable.
. High quality electric parts. safety and reliable.
. Stainless steel cabinet and drum.
. Imported Viton seal makes no leakage.
. Various automatic washing programs for different washing process,programs are avaliable for editing.USB port microprocessor enables to reprogram freely&easily by PC.
. Easy access to all parts for maintenance,all the parts have high quality.
. Large drain valves,drain away water fast.Two drain pipes are available.
. Each drum tested by dynamic balance machine and the gravity deviation no more than 20g.
. 5 removable compartments Soap hoppers(above 30kg).
. Electric,steam heating&Hot water.
. New version heavy duty laundry washing machine is widely used by Hotel,Hospital,Campus Laundry and Dry Cleaning Shops,etc..
