Product Details:
|
Power: | 0.55kw | Capacity: | 15kg |
---|---|---|---|
Voltage: | 220/380v | Drum Size: | Ф630×680mm |
Machine Size: | 1220×750×1500mm | Industry Used: | Electronic Industry |
Roller Speed: | 38r/min | After-sales Service Provided:: | Video Technical Support, Field |
Machine Type: | 15kg To 100kg Industrial Laundry | Warranty: | 1 Year |
Material: | Stainless Steel | Heating Ways: | Steam ,electric |
Control: | Full Automatic | Application: | Laundry Center, Hotel, Hospital, Dry Clean Shop, School |
Highlight: | hotel kitchen equipments,hotel catering equipment |

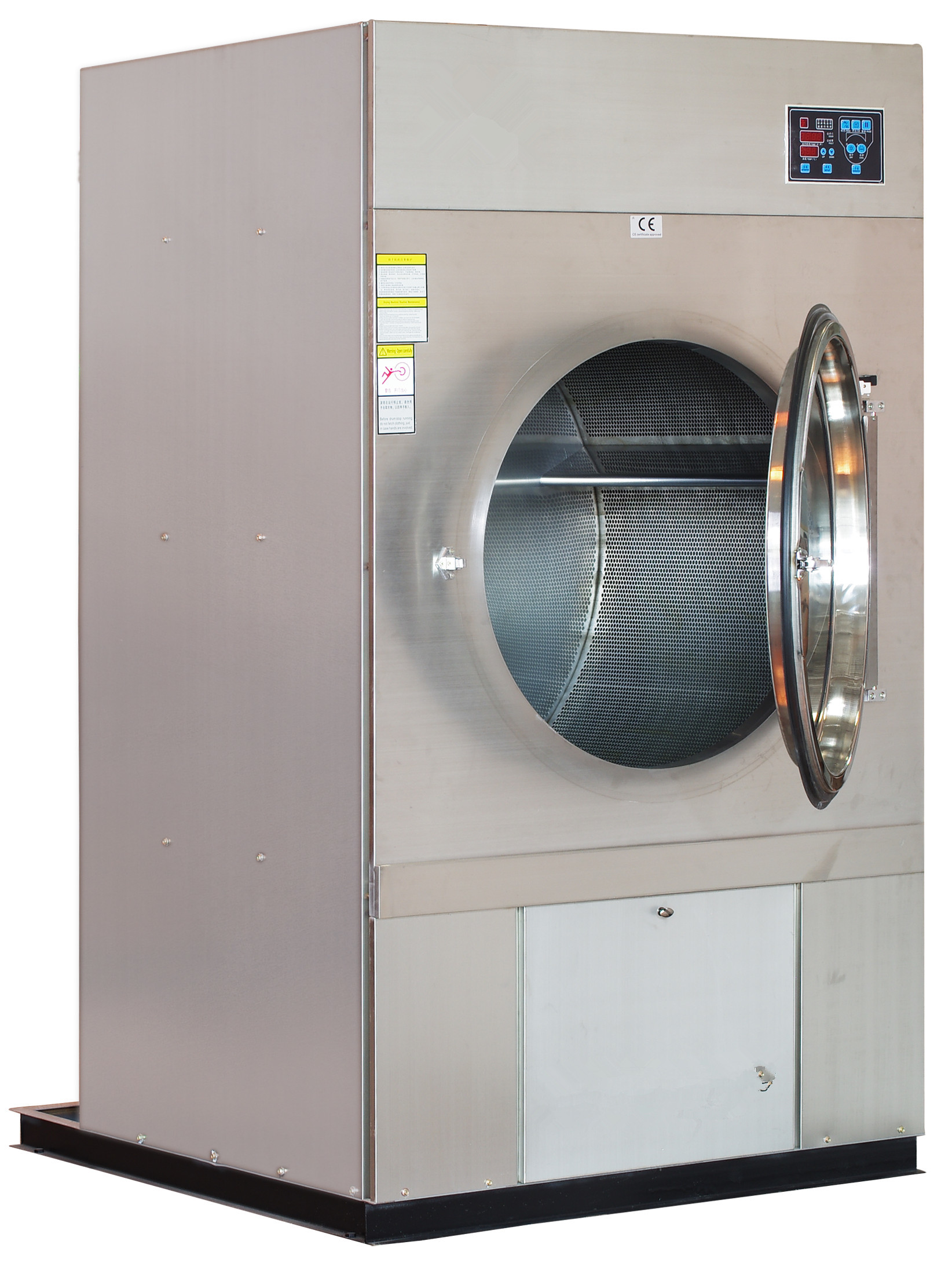

Hotel Hospital Laundry Dry Cleaning Machine 15kg Industrial Dryer Stainless Steel
Model | GQ-30 | GQ-60 | GQ-100 | GQ-150 | GQ-200 |
Capacity | 15KG | 30kg | 50kg | 70kg | 100kg |
Drum size | Ф630×680mm | Ф830×810mm | ф970×970mm | ф1150×970mm | ф1400×1070mm |
Motor Power | 0.55kw | 0.75kw | 1.1kw | 1.5kw | 2.2kw |
Fun Power | 0.55kw | 0.75kw | 1.1kw | 1.5kw | 2.2kw |
Electric Heating Power | 15kw | 21kw | 27kw | 36kw | 40kw |
Voltage | 220/380v | 220/380v | 380v | 380v | 380v |
Drum Speed | 38r/min | 38r/min | 38r/min | 38r/min | 38r/min |
Steamer press | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa | 0.4-0.6Mpa |
Steamer tube size | DN25 | DN25 | DN25 | DN25 | DN25 |
Gas tube size | DN15 | DN15 | DN15 | DN15 | DN15 |
Machine size | 1100×850×1500mm | 1450×950×1820mm | 1600×1100×2050mm | 1620×1300×2280mm | 2000×1530×2200mm |
Net Weight | 300kg | 450kg | 550kg | 700kg | 750kg |
★ Liquid Crystal Display Screen
The intelligent system and the concise operation interface realizes the humanized operation. The machine is equipped with hot/cold wind thermostat device. You can adjust the temperature and set the timing according to your practical demands.
★ Unique Heating Type
Several different heating types are for your choice, such as electric heating, steam heating and gas heating, etc. We can offer the Custom-made heating absorption type as your demands.

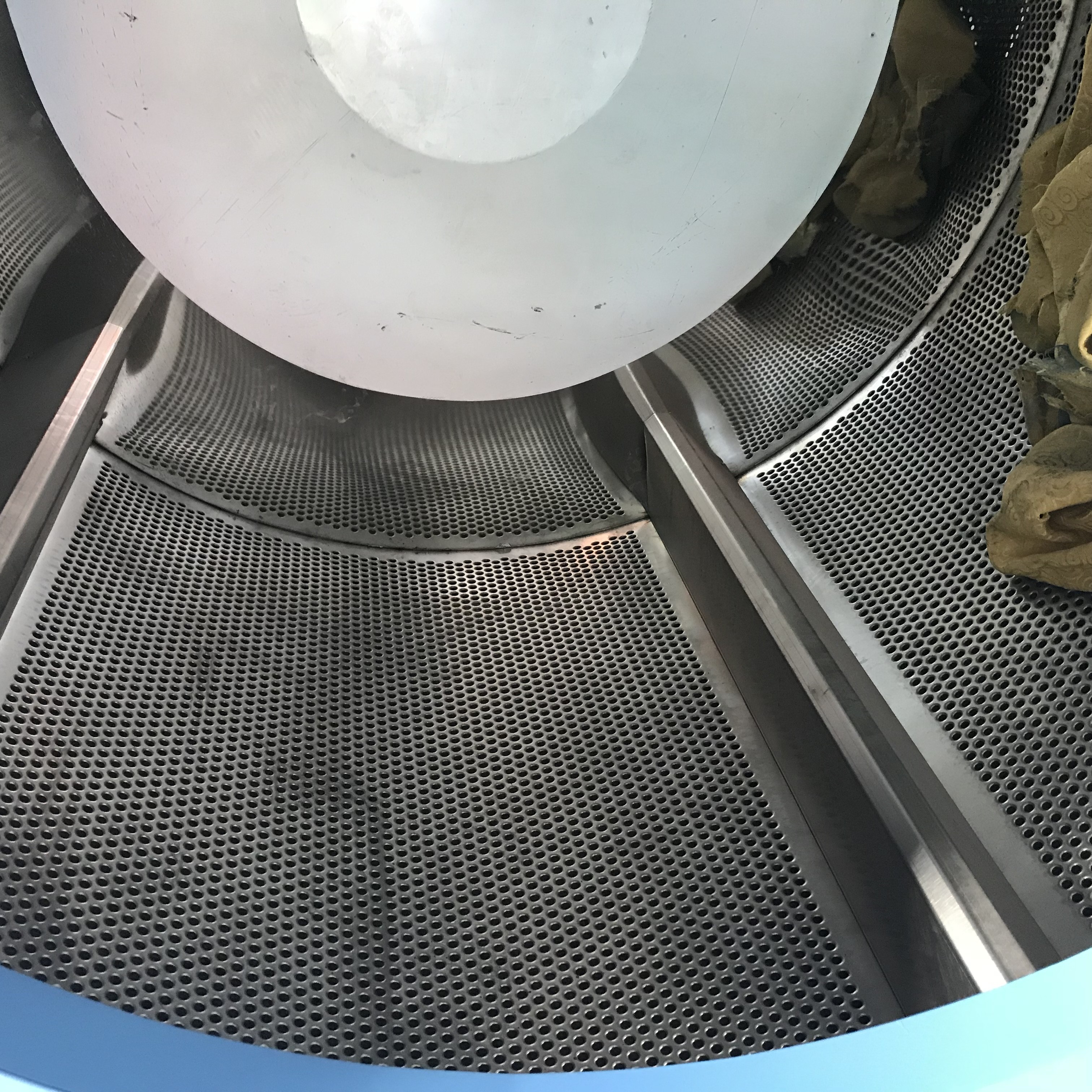

★ Rotary Roller.
Unique back and forth rolling type maintains the quality and the color of the clothing, as well
as having high efficiency of ventilation, and excellent drying performance. You could easily remove the filth at he bottom of the cover (in front of the machine). With high performance and convenience, it’s the indispensable ideal drying facilities for you.
★ Usage:
This series of dryer machines are mainly suitable for drying textile about cotton, fabric , chemical fibre. They are very suitable for laundering and dyeing industry, the guesthouse, hotel, hospital, army, academy, etc
1. Robust construction. Durable quality stainless steel panel & drum, acid and alkali resistance.
2. Microprocessor control. User friendly and easy programmable. 5 pre set programs and 25 programmable. setting washing period, time, frequency at will. Optional hand operation control.
3. Mechanical suspension shock structure, combination of large diameter spring and hydraulic damper, perfect running , low noise, 100% free-standing.
4. Large door opening makes loading and unloading easy .
5. Integrated Safety door locking system.
6. Soap dispensers, corrosion free.
7. Air regulated system for drain and inlet valves.
8. Hot/cold fill. Steam/electric heated. Remote lubricating.
9. Used industrial laundry machine imported CTTO viton seal. Multiple sealing system, oil sealing, water sealing, stainless steel sealing. No leakage.
10. Used industrial laundry machine imported Siemens chip inverter system, realizing washing and extracting stepless adjusting.
All stainless steel design prolongs the machine service life.
Fully sealed refrigeration recycling system makes the machine enviromentally-friendly and energy-saving.
Copper made refrigeration coil makes recycling more efficient.
Maximum flowing renewable nylon filter makes washed clothes cleaner.
Large size distill box to meet any distilling requirement.
Three solvent boxes to meet washing multi-color clothes.
Automatic dry cleaning machine is composed of basket,refrigeration system,water separator, filter and heater etc. It is mainly used in the hotel, restaurant,laundry plant to dry clean woolen clothes and nylon clothes,clothes can remain no wrinkle ,no shrinkage,no shape change ,clean and trim.
1. Strong refrigeration system: Evaporator in the refrigeration system can be recovered as the condenser of the dryer, the condenser in the refrigeration system can be recovered as the preheater of the dry-cleaning machine. They are put in the drying air channel together to preheat the air flow with the high temperature and pressure from condensing. By this way, drying speed is increased and steam supply is reduced to the lowest to save the energy
2. Heat exchanger is big so that the heat efficiency is high and energy is saved.
3. Complete recycling system: Air inside the basket is completely recycled after drying process, which reaches the level in the western countries.
4. Dupl.-separating receiver is added to further recycle perchlorethylene, solvent so as to reduce the cost and improve environment protection level. Negative pressure sucks air inside the machine when loading and unloading machine so that the operator will not smell the perchlorethylene and working condition is improved.
5. Fully automatic control system by Programmable Computer with automatic and manual function, with LCD super-large screen.
6. Inverter drive. Frequency conversion motor adopted for energy-saving.
7. The distillation system with automatic control device for liquid level. And distillation will be heated by steam, the used heat of distillation may be recycled for drying.
